T-Grid ceiling systems have the following characteristics and properties:
• Hot Dipped galvanized steel which prevents rusting and long lasting system performance
• Rotary stitched for extra strength which technically locks the grid system for additional strength and safety.
• Locking system for accurate installation and quick and easy mounting and de-mounting
• Ceilings tiles of various thickness and edges like square, butt, regular, reveal, micro look edges are compatible with different frameworks.
• Ceiling suspension systems are available in a range of options mentioned below.
Specification :

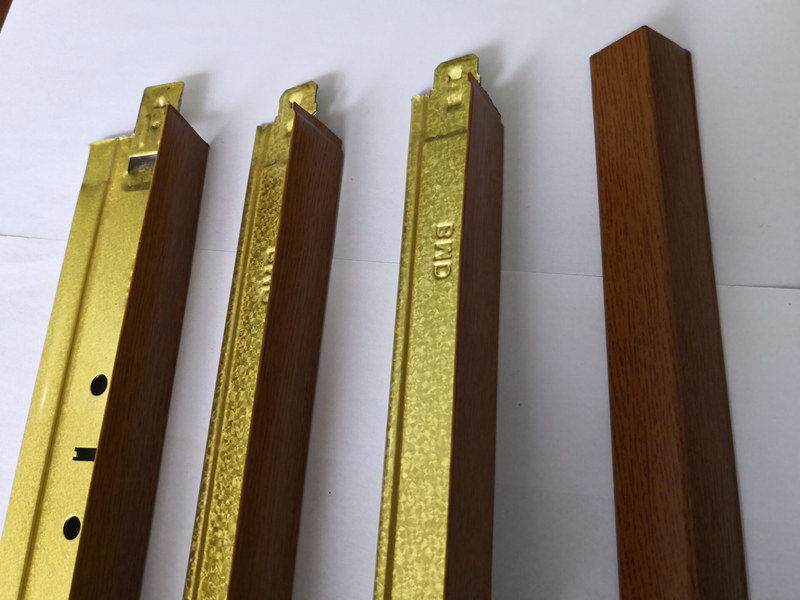

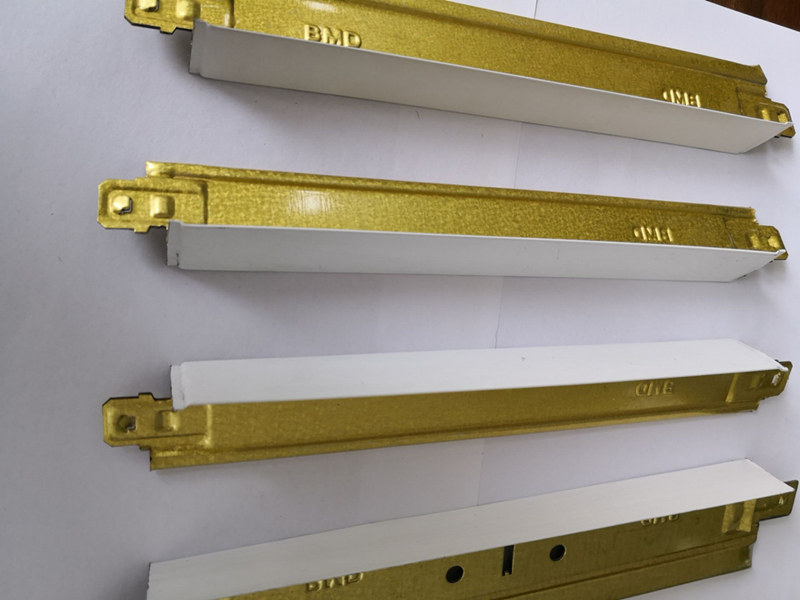

Main Tee
Height*Width*Length
32*24*3600/3660/3750mm
38*24*3600/3660/3750mm
Thickness: 0.23mm~0.4mm
Long Cross Tee
Height*Width*Length
32*24*1200/1220/1250mm
38*24*1200/1220/1250mm
26*24*1200/1220/1250mm
23*24*1200/1220/1250mm
Thickness: 0.23mm~0.4mm
Short Cross Tee
Height*Width*Length
32*24*600/610/625mm
38*24*600/610/625mm
26*24*600/610/625mm
23*24*600/610/625mm
Thickness: 0.23mm~0.4mm

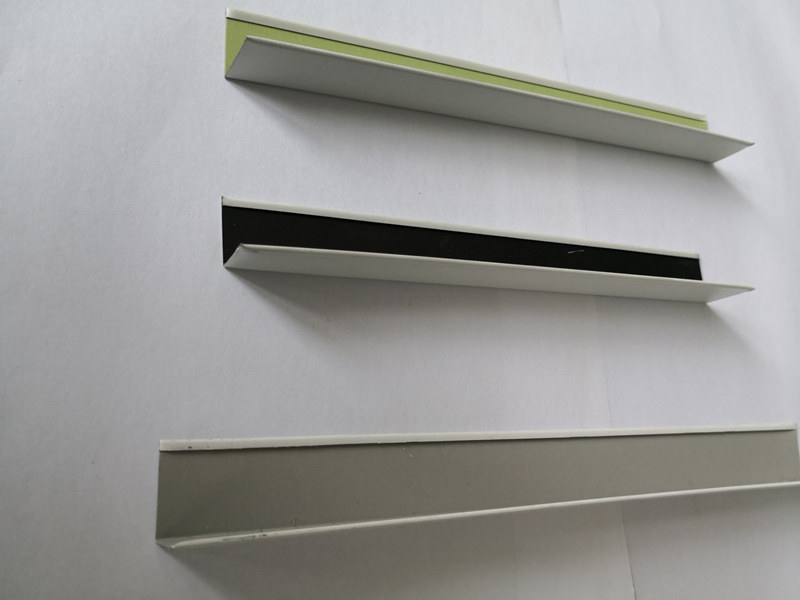

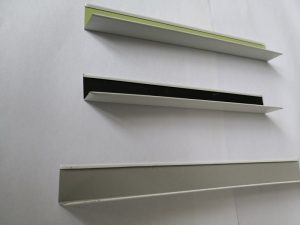

Wall Angle
24*24*3000/3050mm
22*22*3000/3050mm
20*22*3000/3050mm
Thickness: 0.25mm~0.4mm
T-Grid framework is the most popular ceiling system for a wide range of applications.
T-Grid ceiling is a popular type of false ceiling system which is quick and easy to install and maintain.
Grid ceiling has fast become a standard system to be used in a variety of installations.
T-Grid exposed ceiling is compatible with all the popular 2×2 ceiling tiles available in the market. The standard size for ceiling tiles is 595mm x 595 mm.
